Engine Oil Cooler

Your Professional Engine Oil Cooler Supplier!

JINAN KOOLMAN INC. is a professional manufacturer, have an independent right to export, mainly deal car and truck parts, including filters; fuel pumps;fuel pump assembly; ignition system; clutch; brake system; Sensor and other parts.

Why Choose Us

Advanced Equipment

The company has a variety of advanced domestic and imported analysis, testing, manufacturing and testing equipment, to meet the quality needs of products, the formation of large-scale productivity.

Quality Control

Our company has a sound organizational structure and a strict quality assurance system. Each product undergoes strict production and performance tests to ensure that the quality results of each link are more reliable.

Product Market

Our product market covers more than 40 countries and regions including America, Europe, the Middle East, and Southeast Asia.

Our Service

Our company supports product packaging customization, product engraving, and provides sample customization services.

Overview of Engine Oil Cooler

An oil cooler is a radiator-like component specifically designed to keep your oil cool. It consists of tubes and fins that allow for good airflow to pass through. Usually, they are placed where they can receive maximum airflow such as in front of or behind the radiator or fans.

Product Specification

We offer the following Specifications

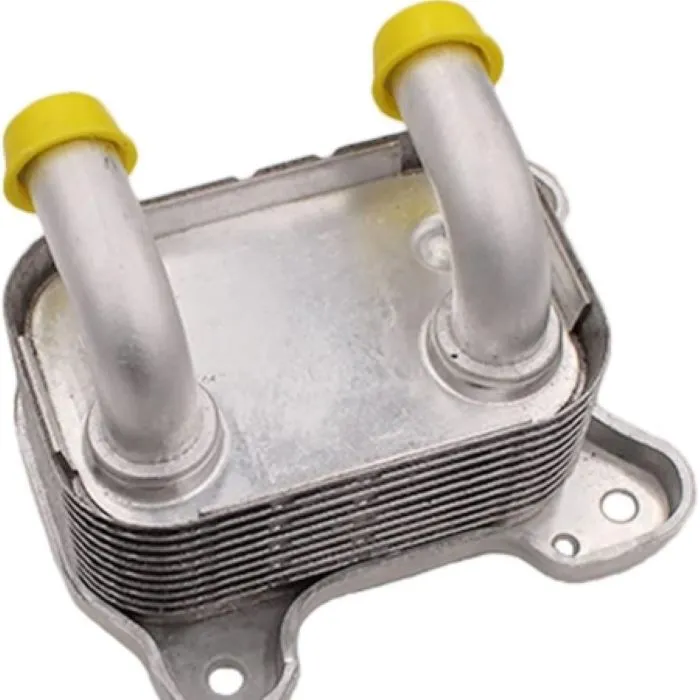

Product name	Oil Cooler
Model No	650616 97223705 0650616
Car Make	For opel
Brand	KOOLMAN
Origin	China
Warranty service	1 year
New or Old	New
Size	496294mm
Material	Aluminum

Types of Engine Oil Coolers

Engine oil coolers come in two basic types: oil-to-water and oil-to-air. Both types flow the oil through a heat exchanger element that either adds or pulls heat away to maintain the proper temperature. one type uses air to perform this function, while the other uses water.

The oil-to-air is basically a small radiator that cools the oil via ambient air passing over the cooler's fins. Some use a thermostatically controlled module bypass valve to reroute cooled oil back through the engine without passing through the cooler again until the oil temperature warms up.

Advantages of Engine Oil Cooler

The most important engine oil cooler benefit is that it takes away the surplus heat from the engine oil. The engine oil needs airflow to take away the excess heat.
Oil cooler cools the hot air at an exact temperature, as a result, the engines working enhances generally
Oil coolers make sure the oil is cooled off properly before circulating it
The oil temperature is controlled in the oil to the water cooler
Installation of oil coolers is easy
Oil coolers decrease the use of water cooling systems that can be corrosive to the engine
Oil circulation is controlled and efficient

Installation Factors

There are just two general rules when it comes to mounting the cooler. (Remember, "all other variables being equal.")

Oil coolers require airflow to take heat away. More airflow is better.
Cooling depends on the difference in temperature between the air and the oil. Cooler air cools better than warmer air.

Air temperature has a direct effect on oil cooler efficiency. Hot air does not cool as well as cool air. This is why we turn on the AC when we're hot, and not the heater. Mounting the oil cooler behind the radiator can reduce the efficiency of the cooler by as much as half. A better solution would be to mount the cooler in front of the radiator. The trade-off is that the efficiency of the radiator will be affected by the air coming through the cooler, but the effect should be much smaller because the cooler is typically smaller than the radiator. An even better option would be to mount the cooler next to the radiator (assuming there is room) or below the radiator (if it can be protected from damage).

The air temperature difference also means that if we run two oil coolers, they should be plumbed in parallel, rather than in series. If you run two coolers in series, the oil in the second cooler would be cooler (closer to the air temperature) than the oil in the first cooler, making it much less efficient. Another bonus to plumbing in parallel is that it has the same effect as adding more rows to the cooler: Less flow restriction for an even happier oil system.

Packaging and Delivery

Brown or customized color boxes, 5-layers outside cartons.
Shipping: Internation express, air freight, train freight & sea freight.

productcate-1-1

FAQ

Q: Where is the oil cooler located?

A: Engine oil coolers are small radiators placed in front of the coolant system on an automobile that lower the temperature of the oil as it passes through the coils. It is only operational when the motor is running. Lowering the temperature of engine oil has many advantages, especially in air-cooled motors.

Q: How does the Oil Cooler help the engine?

A: It moves around a maze of pipes in an engine to provide a cooling effect. It can lessen the temperature by as much as 30 degrees, which is why it can prevent the engine from being too hot. Engine oil cooler also helps in maintaining the right level of viscosity. If there is too much heat, the viscosity will be less.

Q: Is an oil cooler a radiator?

A: Oil cooling is the use of engine oil as a coolant, typically to remove surplus heat from an internal combustion engine. The hot engine transfers heat to the oil which then usually passes through a heat-exchanger, typically a type of radiator known as an oil cooler.

Q: How much does the oil cooler really help?

A: Changing the oil often keeps the lubricating ability boosted, and an oil cooler system can maintain the quality of oil for longer periods of time by lowering the working temperature of the oil by as much as 30 percent.

Q: Are you a factory or a trading company ?

A: We are a factory and trading company at the same time.

Q: How about the quality of the products ?

A: Our products are of high quality and we have registered and reputable brands.

Q: What's the MOQ for each items ?

A: 100 pieces.

Q: What's our shipping ways ?

A: We can provide different types of shipping such as sea, air, and land.

Q: What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q: How about your delivery time?

A: Generally, it will take 20 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q: Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q: What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q: Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.

As one of the most professional engine oil cooler manufacturers and suppliers in China, we're featured by quality products and good price. Please rest assured to buy high-grade engine oil cooler for sale here from our factory.

Oil Cooler 650616, engine oil cooler, Oil Cooler 55355599
