When does the bypass valve in an oil filter open?

Hey there, folks! As an oil filter supplier, I've gotten tons of questions over the years about how these little gadgets work. One of the most common questions I hear is, "When does the bypass valve in an oil filter open?" Well, buckle up, because I'm gonna break it down for you in plain English.

What's a Bypass Valve Anyway?

First things first, let's talk about what a bypass valve is and why it's important. An oil filter's main job is to remove dirt, debris, and other contaminants from the engine oil. But sometimes, things can get a little crazy in there. The bypass valve is like a safety net for your engine. It's a small valve inside the oil filter that allows oil to bypass the filter media when certain conditions are met.

Think of it this way: your oil filter is like a bouncer at a club. Its job is to keep the riff - raff (contaminants) out. But if there's a huge crowd trying to get in (high oil flow or clogged filter), the bouncer might open a side door (bypass valve) to let people in so the party (engine operation) doesn't stop.

When Does the Bypass Valve Open?

Cold Start Conditions

One of the most common times the bypass valve opens is during a cold start. When you start your engine in cold weather, the oil is thick and viscous. It's like trying to pour molasses on a cold winter morning. The thick oil has a hard time flowing through the tiny pores in the filter media.

As the oil pump tries to push this thick oil through the filter, the pressure on the inlet side of the filter builds up. Once the pressure difference between the inlet and the outlet of the filter reaches a certain point (usually around 8 - 12 psi, but it can vary depending on the filter design), the bypass valve opens. This allows the thick oil to bypass the filter and flow directly to the engine. It's not ideal because the oil isn't being filtered, but it's better than starving the engine of oil.

Clogged Filter

Another situation where the bypass valve comes into play is when the filter gets clogged. Over time, as the filter traps more and more contaminants, the pores in the filter media start to get blocked. This restricts the flow of oil through the filter.

As the oil flow is restricted, the pressure on the inlet side of the filter increases. Just like in the cold - start scenario, when the pressure difference across the filter reaches the pre - set limit, the bypass valve opens. This ensures that the engine still gets an adequate supply of oil, even if it's not as clean as it should be.

Why Is the Bypass Valve Important?

You might be thinking, "Why not just make the filter media so big that it never clogs or the oil can always flow through it easily?" Well, there are a few reasons.

First of all, space is a big issue. Engines are designed to be compact, and there's only so much room for an oil filter. If we made the filter media too large, it wouldn't fit in the engine compartment.

Second, cost. Larger filter media means more material, which means higher production costs. And let's face it, nobody wants to pay a fortune for an oil filter.

The bypass valve is a cost - effective and space - saving solution that ensures the engine doesn't run out of oil, even in less - than - ideal conditions.

How Does This Affect Our Oil Filters?

At our company, we take the design of the bypass valve very seriously. We know that it's a critical component of the oil filter. That's why we use high - quality materials and advanced manufacturing techniques to ensure that our bypass valves work reliably.

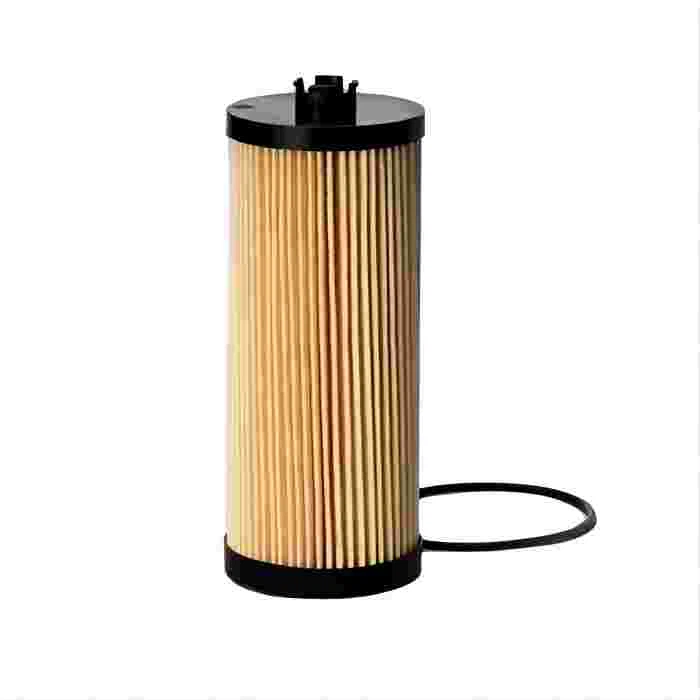

For example, our Oil Filter HU9452X is designed with a precision - engineered bypass valve. It's calibrated to open at just the right pressure, whether it's during a cold start or when the filter starts to get clogged. This means that your engine is always protected, no matter what.

Our Hydraulic Oil Filter 0009831645 is another great example. It's built to handle high - pressure hydraulic systems, and the bypass valve is designed to withstand the extreme conditions.

And if you're looking for a reliable oil filter for a heavy - duty application, our Oil Filter LF3478 is a top choice. The bypass valve in this filter is designed to open smoothly and quickly to protect your engine.

What to Look for in an Oil Filter Bypass Valve

When you're choosing an oil filter, there are a few things to keep in mind when it comes to the bypass valve.

Pressure Setting

Make sure the bypass valve has an appropriate pressure setting. You want it to open at the right pressure to protect your engine without opening too easily. A valve that opens too early might let unfiltered oil into the engine, while a valve that opens too late could cause oil starvation.

Quality of Construction

The bypass valve should be made of high - quality materials. It needs to be durable and able to withstand the constant pressure changes and vibrations in the engine.

Reliability

You want a bypass valve that works every time. Look for filters from reputable manufacturers who have a track record of producing reliable products.

Conclusion

So, there you have it, folks! The bypass valve in an oil filter is a crucial component that plays a vital role in protecting your engine. It opens during cold starts and when the filter gets clogged to ensure that your engine always has an adequate supply of oil.

If you're in the market for a high - quality oil filter, we've got you covered. We offer a wide range of oil filters, each designed with a reliable bypass valve. Whether you're driving a car, a truck, or operating heavy machinery, we have the right filter for you.

If you're interested in learning more about our oil filters or want to discuss your specific needs, don't hesitate to reach out. We're here to help you keep your engine running smoothly. Let's talk about how we can work together to get you the best oil filter solutions.

References

• "Automotive Engine Oil Filter Design and Function" - SAE International
• "Oil Filtration Basics" - Donaldson Company
• "Understanding Oil Filter Bypass Valves" - Purolator Filters
